ISO Later [IL-1/IL-2]
Transformer isolated de-coupler, for removing ground loops and for use in applications where complete Galvanic isolation is required such as Broadcast feeds and remote recording. Mounted in a heavy-duty, all-steel chassis and available in Single Channel (IL-1) or Double Header Dual Channel (IL-2) format. The unique AudiBox Double Header format puts one channel on the front of the unit, and a second channel on the rear, putting two channels in the space of one! An ultra-useful and convenient option. Needs no power. More...
ISO Splitter [IS-1/IS-2]
A transformer isolated one input to two outputs microphone/line splitter for dividing one input signal two ways in applications where complete Galvanic isolation is required. Mounted in a heavy-duty, all-steel chassis and available in Single Channel (IS-1) or Double Header Dual Channel (IS-2) format. The unique AudiBox Double Header format puts one channel on the front of the unit, and a second channel on the rear, putting two channels in the space of one! An ultra-useful and convenient option. Needs no power. More...

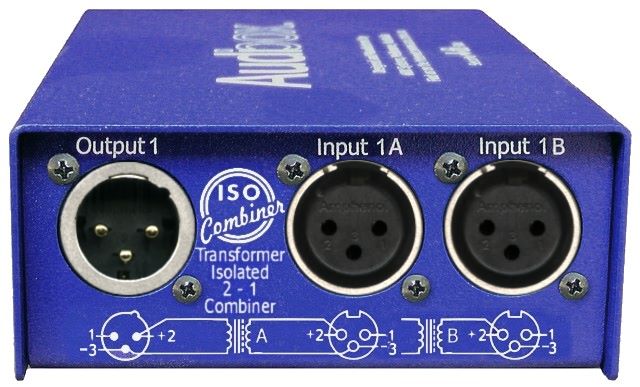

ISO Combiner Duo [IC-1]
The ISO-Combiner Duo is a new transformer-isolated combiner for the AudiBox range of Pro Audio tools and problem solvers. It is ideal for use in applications where two sources have to be combined into one signal, silently and easily. A pair of transformer balanced female XLR inputs on each side combine to deliver a single transformer-isolated male XLR output in this essential audio package. Double Header stereo format four inputs (two on front, two on rear), two outputs (one on front, one on rear). Needs no power. More...
ISO Switcher [ABS-1]
The simplest ideas are usually the best! The new ISO Switcher is a stereo Input signal switcher for the extremely popular AudiBox range. A front panel push button switch silently switches between two pairs of A or B female XLR inputs to a stereo pair of XLR male output connectors. ARX ‘SoftSwitch’ technology achieves this with no loud noises through the audio system when switching. Typical applications include switching between live band or DJ when both are using the same speaker system. More...

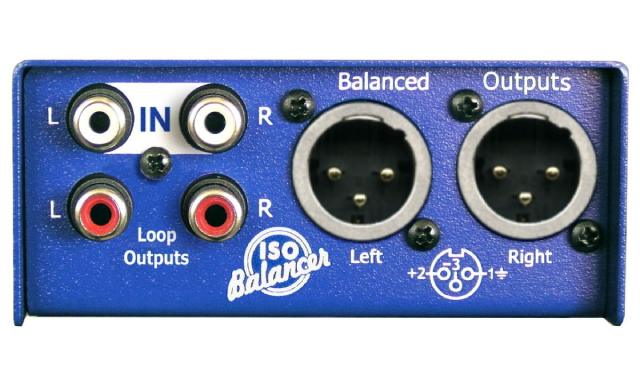

ISO Balancer [IB-1]
A Dual channel Unbalanced to Balanced Low Impedance transformer-isolated converter. The ISO Balancer will convert an unbalanced RCA low impedance signal to a balanced low impedance signal suitable for use with professional equipment and long cable runs. Transformer ground isolation provides low-noise operation suitable for any application. Mounted in a heavy-duty, all-steel chassis and available in Dual Channel format only. Needs no power. More...
ISO De-Balancer [IB-2]
A unique de-balancing unit, the De-Balancer will convert stereo XLR balanced low impedance signals to unbalanced RCA low impedance signals, to allow leads to run balanced from point A to point B and then be de-balanced for connecting to a high impedance/unbalanced input at the B end. This enables you to keep a balanced line all the way up to the input of an unbalanced unit, reducing hum, noise, and interference pickup along the way. Transformer Ground isolation provides low-noise operation suitable for any application. Mounted in a heavy-duty, all-steel chassis and available in Dual Channel format only. Needs no power. More...

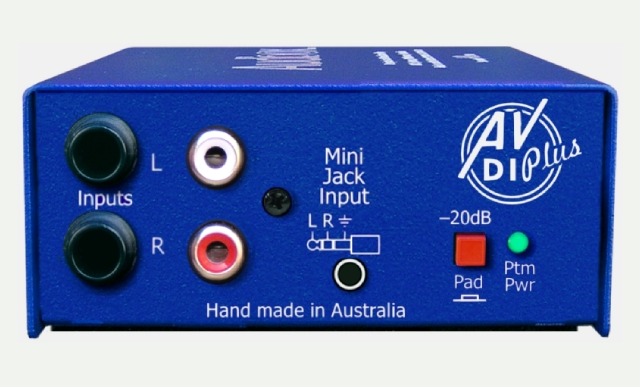

AV DI [AVDI]
Stereo AudioVisual Active Direct box, with dual RCA or stereo mini jack input and dual XLR outputs. The AV DI is ideal for interfacing computer sound cards with pro sound systems. Heavy-duty, all-steel chassis, –20 dB Pad switch, plus phantom or 12–15V DC power options. Permanent soft audio ground network prevents ground loops, providing pristine audio quality. Ideal for interfacing any consumer stereo audio signal (especially notebook computer sound cards) with the balanced inputs of professional sound systems. Available in Dual Channel format only. Requires phantom or DC power. More...
Pro-DI [PDI-1/PDI-2]
Flexible compact active Direct Boxes, with normal high impedance input as well as a separate speaker level input for connection to an aux speaker output on the back of instrument amplifiers. Heavy-duty, all-steel chassis, –20 dB Pad and Audio Ground Lift switches, loop output jack plus phantom, or DC power options. Available in Single Channel (PDI-1) or Double Header Dual Channel (PDI-2) format. Requires phantom or DC power. More...
Single Unit Mount [TMK-1]
Mounting bracket kit for a single AudiBox.
AudiBox Series USB Direct Boxes
New!

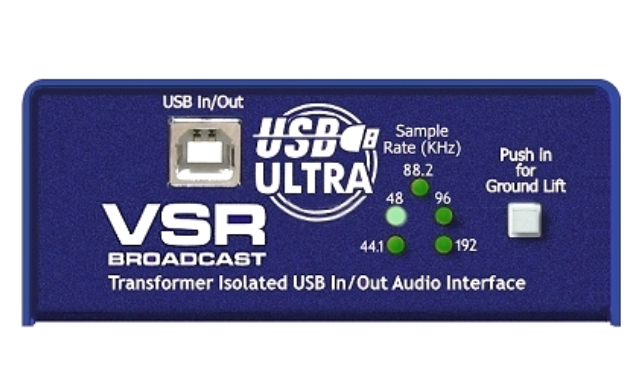

USB I/O VSR [USB-5] NEW!
USB I/O VSR [USB-5] NEW!
USB I/O VSR [USB-5] NEW!
ARX is excited to present the new ARX USB I/O VSR a true plug and play USB 24-bit high resolution digital/analog pro audio interface. VSR stands for Variable Sample Rate, which allows the unit to record and playback at three different sample rates: 44.1, 48, and 96 kHz.
Plug and Play or Install ASIO Driver—Your Choice
The ARX USB I/O VSR installs as a fully compatible generic USB audio device. The default sample rate of 24-bit 44.1 kHz requires no special driver program installation on Mac OSX, Win XP, and Win 7 or 8—just plug and play. To run the expanded hi-res sample rates of 48 and 96 kHz, an ASIO driver is available for download from the ARX website.
USB DI HP [USB-4] NEW!
USB I/O VSR [USB-5] NEW!
USB I/O VSR [USB-5] NEW!
In response to many requests from users of our original USB DI who have been using it for specific applications, ARX is excited to present the new ARX USB DI-HP—everything that the original USB DI was, with the addition of a headphone output with its own level control. It is still a true plug and play 24-bit digital to analog pro audio interface, removing the need to use any existing sound card outputs, but now its output level can be monitored quietly and accurately. Naturally, it still features full transformer balanced output isolation to eliminate earth loops/ground hum and other extraneous interaction noise and distortion.
The addition of the headphone output and control allows easy personal monitoring of the audio signal passing through the USB DI-HP without the need for monitor loudspeakers.
USB I/O [USB-3]
USB I/O [USB-3]
USB I/O [USB-3]
As of January 2013, the USB I/O has been updated with 24-bit high-resolution ADC & DACs.
In keeping with our policy of creating essential audio interfaces, ARX is excited to present the new USB I/O—a true plug and play USB digital/analog pro audio interface. It removes the need to use any existing sound card outputs, with their inherent noisy environment and problematic grounding. A professional-level USB Direct Box.
The ARX USB I/O features full transformer balanced Inputs and Outputs, providing the isolation required to eliminate earth loops/ground hum and other extraneous interaction noise and distortion. It installs as a fully compatible generic USB audio device, requiring no special driver program installation on Mac OSX, Win XP, Windows 7, and Vista. The front panel has left and right transformer balanced analog XLR Input and Output connectors that connect to any standard balanced analog inputs and outputs. On the rear panel, there is a Type B USB connector, as well as a ground lift switch and a status LED that indicates the USB I/O is connected and operating. It is ideal for interfacing any USB equipped computer (especially notebook/laptop computers) with the balanced inputs and outputs of professional sound systems. Security features include Kensington®-type computer lock slot and optional bracket kit for under-table mounting. The ARX USB I/O is available in Dual Channel format and is handmade in Australia.
USB DI [USB-2]
USB I/O [USB-3]
USB I/O [USB-3]
USB DI VC installs as a fully compatible generic USB audio device, requiring no special driver program installation on Mac OSX, Win XP, Windows 7, and Vista. The front panel has a Type B USB input connector and two transformers balanced analog audio XLR Line out connectors for connecting to any standard balanced analog input. A status LED on the front panel indicates that the USB DI VC is connected and operating. USB bus-powered.
USB DI [USB-1
Give customers a reason to do business with you.
USB Plug and Play digital to analog pro audio interface with full transformer balanced output isolation to eliminate earth loops/ground hum and other extraneous interaction noise and distortion. The USB DI box installs as a fully compatible generic USB audio device, requiring no special driver program installation on Mac OSX, Win XP, Windows 7, and Vista. The front panel has a Type B USB input connector and two transformers balanced analog audio XLR Line out connectors for connecting to any standard balanced analog input. A status LED on the front panel indicates that the USB DI is connected and operating. USB bus-powered.
