8 Channel Microphone Pre Amp

Console input extending for both digital and analog mixing consoles in studio, live, and broadcast
Mic Preamps for DAW/Hard Disk/Multitrack Recording

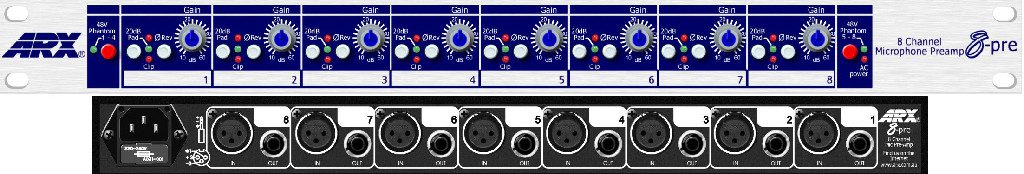

If you love your compact digital (or analog) mixing console but wish it had more microphone inputs, ARX has the solution—the 8-Pre: eight channels of superb sounding microphone preamps in a compact one-rack space chassis.

The 8-Pre is the ideal console extender for those times when you need more microphone inputs. Now you can put those unused line inputs to good use, and who knows—the 8-Pre preamps sound so good that you’ll probably end up using them all the time instead of the ones that came with your mixer!

The 8-Pre’s ultra-low noise figures come from extensive use of premium components plus care and attention to board design and layout. The result is superb, transparent audio quality and the headroom to handle anything that a microphone can throw at it.

Gain is adjustable from 20 db through to 60 dB via a trim control on the front panel, plus we’ve included a –20 dB Pad switch to tame the hottest condenser microphone output if required. The clip status LED lights up 1 dB before the onset of clipping, just to warn you you’re getting close. Phantom power is switchable in banks of four channels: 1 through 4, 5 through 8. A phase reverse switch is also provided on each preamp channel to eliminate any close miking problems.

In short, the ARX 8-Pre is the microphone preamp that you’ll wish the console manufacturer had used. It provides a unique solution to today’s multiple mic preamp requirements.

Every day, ARX Audio interface products solve audio problems for thousands of people around the world. We don’t make digital or analog mixers and we don’t have to cut any corners on quality.


Yes, we know we’re obsessive about audio quality, but we’re betting that you are too!

• Input Gain 20 dB to 60 dB
• Input Pad –20 dB
• Input Impedance 4K Ohm
• Input Headroom +23 dB
• Output Impedance 300 Ohm
• Output Level (Max) +23 dB
• Frequency Response 20 Hz – 20 kHz ±0.2 dB
• Signal to Noise Ratio (Gain set @ 20 dB)
• –93 dB Unweighted, –99 dB ‘A’ weighted
• Distortion @ Unity Gain .004%, 20 Hz – 10 kHz
• Dynamic Range 116 dB
• Phantom Power 48 VDC
• Input Connectors Balanced XLR
• Output Connectors Balanced TRS
• Clip Indicator Illuminates 1 dB prior to clipping
• Power Requirements 100/120V AC, 220/240V AC
• Weight 5 lb/2.2 kg
• Dimensions 19"W x 1-3/4"H x 6"D, 482 x 44 x 155mm
