Isolators, Splitters & Combiners
IL-1 ISO LATER (AB-1) & IL-2 ISO LATER DUO (AB-2)
ISO Later Transformer de-coupler
Model Options
ISO Later
Single Channel unit
ISO Later Duo
Dual Channel unit in DoubleHeader format.
The unique Audibox DoubleHeader format puts one channel on the front of the unit, and a second channel on the rear, putting two channels in the space of one! An ultra useful and convenient option.
Passive unit - no power required
ISO Later

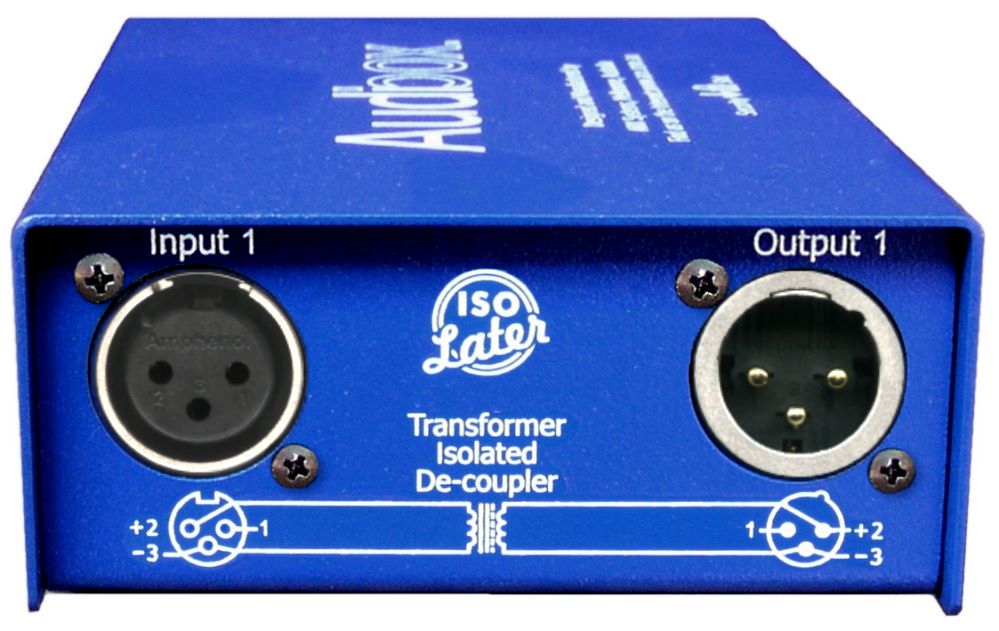

A transformer isolated de-coupler, for removinging Ground loops and for use in applications where complete Galvanic isolation is required, eg Broadcast feeds, remote recording
Available in Single Channel or Double Header format. The heavy duty all-steel chassis is finished in attractive matt textured powdercoat, with hardwearing epoxy screen printing and slip resistant rubber pads.
The ISO Later is a totally passive device with no power requirements, making it a truly universal problem solver.
Security features include Kensington®-type computer lock slot and optional bracket kit for under-table mounting.
Available in Single Channel or Double Header format
Precision engineered
Most of the Audibox range share a common footprint and manufacturing platform. Offset lid screws enable close side-by-side mounting of multiple units.
Click on image at Right to see larger version
Technical Specifications
Input Impedance 600 Ohms
Output Impedance 600 Ohms
Frequency Response 20Hz - 20 KHz ± 0.1dB
Maximum Output Level + 24dBm
THD at Max Output 0.2% 30 Hz - 20KHz
Insertion Loss 0.75dB @ 1 KHz (600 Ohm source & load)
Input Connectors 3 pin female XLR wired Pin 2 + Hot, Pin 3 – Cold
Output Connectors 3 pin male XLR wired Pin 2 + Hot, Pin 3 – Cold. Audio grounds are unconnected
Ground Reference Chassis is grounded to Output Pin 1; Duo version chassis is grounded to Channel 1 Output Pin 1
Construction
All-steel chassis, fibreglass PCB, ultra low noise audio transformer
IS-1 ISO SPLITTER (AB-3) & IS-2 ISO SPLITTER DUO (AB-4)
ISO Splitter
Model Options
ISO Splitter
Single Channel unit
ISO Splitter Duo
Dual Channel unit in DoubleHeader format.
-
The unique Audibox DoubleHeader format puts one channel on the front of the unit, and a second channel on the rear, putting two channels in the space of one! An ultra useful and convenient option.
Passive unit - no power required
ISO Splitter
A transformer isolated 1 input to 2 outputs splitter for splitting 1 input 2 ways in applications where complete Galvanic isolation is required, eg Broadcast feeds, remote recording
Available in Single Channel or Double Header format. The heavy duty all-steel chassis is finished in attractive matt textured powdercoat, with hardwearing epoxy screen printing and slip resistant rubber pads.
The ISO Splitter is a totally passive device with no power requirements, making it a universal problem solver.
Security features include Kensington®-type computer lock slot and optional bracket kit for under-table mounting.
Precision engineered
Most of the Audibox range share a common footprint and manufacturing platform. Offset lid screws enable close side-by-side mounting of multiple units.
Click on image at Right to see larger version
-
Available in Single Channel or Double Header format
Technical Specifications
Input Impedance 300 Ohms
Output Impedance 2 secondaries @ 600 Ohms each
Frequency Response 20Hz - 20 KHz ± 0.1dB
Maximum Output Level + 20dBm
THD at Max Output 0.2% 30 Hz - 20KHz @ 20dBm
Insertion Loss 1.6dB @ 1 KHz (600 Ohm source & load)
Input Connectors 3 pin female XLR wired Pin 2 + Hot, Pin 3 – Cold
Output Connectors 3 pin male XLR wired Pin 2 + Hot, Pin 3 – Cold. Audio grounds are unconnected
Ground Reference Chassis is grounded to Output A Pin 1; Duo version chassis is grounded to Channel 1 Output A Pin 1
Construction
All-steel chassis, fibreglass PCB, ultra low noise audio transformer
IS-3 SUPER SPLITTER (AB-20) & IS-4 SUPER SPLITTER DUO (AB-21)
Model Options
SuperSplitter
Single Channel unit
SuperSplitter DUO
Dual Channel 'Double Header'unit
Passive device - requires no power
SuperSplitter

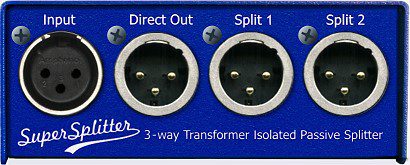

ARX's new SuperSplitter is a transformer isolated one input to three outputs passive splitter. It is ideal for splitting one audio signal three ways in applications where complete Galvanic isolation is required. Galvanic Isolation using a transformer is the classic method used to prevent Ground Loops and Hums, providing Noiseless Signal routing, Broadcast Split feeds, Remote Recording splits and many more applications.
The SuperSplitter allows Phantom powering of Microphones and Direct Boxes via the Direct Out to Input XLR, and features 3 XLR direct & Isolated outputs.
Features:
- Input and Direct output are directly connected via an internal "loop through", allowing +48 VDC Phantom power to pass through the unit to Phantom power Microphones and DI Boxes
- Transformer isolation prevents ground loops, hums and other extraneous electrical noise and interference.
- Available in either Single Channel or Dual Channel "Double Header" format.
- Split 1 and Split 2 are fully transformer isolated outputs, with no direct Earth / Ground connection via XLR pin 1s.
- Uses the same Broadcast standard audio transformer as our industry standard MSX 48 & MSX 12 Splitters.
The SuperSplitter is housed in a heavy duty all-steel chassis finished in attractive matt textured polyurethane, with hardwearing epoxy screen printing and slip resistant rubber base pad.
Security features include an optional bracket kit for under-table mounting.
The ARX SuperSplitter is hand made in Australia
Technical Specifications
SuperSplitter Specifications
Input Impedance 300 Ohms
Output Impedance 2 secondaries @ 600 Ohms each
Frequency Response 30Hz - 20 KHz ± 1dB
Maximum Output Level + 20dBm
THD at Max Output 0.2% 30 Hz - 20KHz @ 20dBm
Insertion Loss 0.5dB @ 1 KHz (600 Ohm source & load)
Input Connectors 3 pin female XLR wired Pin 2 + Hot, Pin 3 – Cold
Direct Output 3 Pin male XLR wired Pin 2 + Hot, Pin 3 – Cold
Split 1 and Split 2 3 pin male XLR wired Pin 2 + Hot, Pin 3 – Cold. Audio grounds not connected; Pin 1 is floating.
IC-1 ISO COMBINER (AB-5) & IC-2 ISO COMBINER DUO (AB-6)
ISO Combiner
Model Options
ISO Combiner
Single Channel unit
ISO Combiner Duo
Dual Channel unit in DoubleHeader format.
-
The unique Audibox DoubleHeader format puts one channel on the front of the unit, and a second channel on the rear, putting two channels in the space of one! An ultra useful and convenient option.
Passive unit - no power required
ISO Combiner

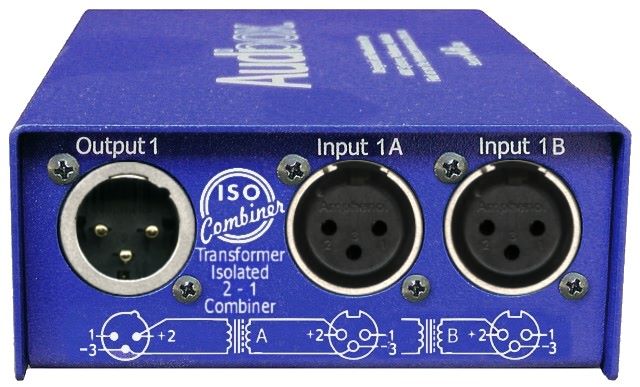

The ISO-Combiner is a new transformer isolated combiner for the Audibox range of Pro Audio tools and problem solvers. It is ideal for use in applications where two sources have to be combined into one silently and easily.
A pair of transformer balanced female XLR inputs combine to deliver a single transformer isolated male XLR output in this essential audio package.
Available in Single Channel or Double Header format. The heavy duty all-steel chassis is finished in attractive matt textured powdercoat, with hardwearing epoxy screen printing and slip resistant rubber pads.
The ISO Combiner is a totally passive device with no power requirements, making it a universal problem solver.
Security features include Kensington®-type computer lock slot and optional bracket kit for under-table mounting.
The DUO version has a second input and output set on the rear, making it doubly useful
Precision engineered
Most of the Audibox range share a common footprint and manufacturing platform. Offset lid screws enable close side-by-side mounting of multiple units.
Click on image at Right to see larger version
-
Available in Single Channel or Double Header format
Technical Specifications
Input Impedance 600 Ohms Balanced
Max Input Level +20 dB
THD Max 0.2% 30Hz to 20 KHz
Frequency Response 20 - 20 KHz ± 0.5 dB
Insertion Loss < 6dB @ 1 KHz (600 Ohm source/load)
Power Requirements None
Input Connectors 2 x Female XLR, Wired Pin 1 Not Connected, Pin 2 + Hot, Pin 3 – Cold.
Output Connectors Male XLR, Wired Pin 1 Chassis Ground, Pin 2 + Hot, Pin 3 – Cold.
Construction All-steel powdercoated chassis chassis, fibreglass PCB, ultra low noise audio transformers
Please Note When combining Unbalanced Inputs, Pins 1 and 3 should be bridged and the Ground wired to Pin 3
IL-1 ISO LATER (AB-1) & IL-2 ISO LATER DUO (AB-2)
ISO Later Transformer de-coupler
Model Options
ISO Later
Single Channel unit
ISO Later Duo
Dual Channel unit in DoubleHeader format.
-
The unique Audibox DoubleHeader format puts one channel on the front of the unit, and a second channel on the rear, putting two channels in the space of one! An ultra useful and convenient option.
Passive unit - no power required
ISO Later
A transformer isolated de-coupler, for removinging Ground loops and for use in applications where complete Galvanic isolation is required, eg Broadcast feeds, remote recording
Available in Single Channel or Double Header format. The heavy duty all-steel chassis is finished in attractive matt textured powdercoat, with hardwearing epoxy screen printing and slip resistant rubber pads.
The ISO Later is a totally passive device with no power requirements, making it a truly universal problem solver.
Security features include Kensington®-type computer lock slot and optional bracket kit for under-table mounting.
Available in Single Channel or Double Header format
Precision engineered
Most of the Audibox range share a common footprint and manufacturing platform. Offset lid screws enable close side-by-side mounting of multiple units.
Click on image at Right to see larger version
Technical Specifications
Input Impedance 600 Ohms
Output Impedance 600 Ohms
Frequency Response 20Hz - 20 KHz ± 0.1dB
Maximum Output Level + 24dBm
THD at Max Output 0.2% 30 Hz - 20KHz
Insertion Loss 0.75dB @ 1 KHz (600 Ohm source & load)
Input Connectors 3 pin female XLR wired Pin 2 + Hot, Pin 3 – Cold
Output Connectors 3 pin male XLR wired Pin 2 + Hot, Pin 3 – Cold. Audio grounds are unconnected
Ground Reference Chassis is grounded to Output Pin 1; Duo version chassis is grounded to Channel 1 Output Pin 1
Construction
All-steel chassis, fibreglass PCB, ultra low noise audio transformer
IS-1 ISO SPLITTER (AB-3) & IS-2 ISO SPLITTER DUO (AB-4)
ISO Splitter
Model Options
ISO Splitter
Single Channel unit
ISO Splitter Duo
Dual Channel unit in DoubleHeader format.
-
The unique Audibox DoubleHeader format puts one channel on the front of the unit, and a second channel on the rear, putting two channels in the space of one! An ultra useful and convenient option.
Passive unit - no power required
ISO Splitter
A transformer isolated 1 input to 2 outputs splitter for splitting 1 input 2 ways in applications where complete Galvanic isolation is required, eg Broadcast feeds, remote recording
Available in Single Channel or Double Header format. The heavy duty all-steel chassis is finished in attractive matt textured powdercoat, with hardwearing epoxy screen printing and slip resistant rubber pads.
The ISO Splitter is a totally passive device with no power requirements, making it a universal problem solver.
Security features include Kensington®-type computer lock slot and optional bracket kit for under-table mounting.
Precision engineered
Most of the Audibox range share a common footprint and manufacturing platform. Offset lid screws enable close side-by-side mounting of multiple units.
Click on image at Right to see larger version
-
Available in Single Channel or Double Header format
Technical Specifications
Input Impedance 300 Ohms
Output Impedance 2 secondaries @ 600 Ohms each
Frequency Response 20Hz - 20 KHz ± 0.1dB
Maximum Output Level + 20dBm
THD at Max Output 0.2% 30 Hz - 20KHz @ 20dBm
Insertion Loss 1.6dB @ 1 KHz (600 Ohm source & load)
Input Connectors 3 pin female XLR wired Pin 2 + Hot, Pin 3 – Cold
Output Connectors 3 pin male XLR wired Pin 2 + Hot, Pin 3 – Cold. Audio grounds are unconnected
Ground Reference Chassis is grounded to Output A Pin 1; Duo version chassis is grounded to Channel 1 Output A Pin 1
Construction
All-steel chassis, fibreglass PCB, ultra low noise audio transformer
IS-3 SUPER SPLITTER (AB-20) & IS-4 SUPER SPLITTER DUO (AB-21)
Model Options
SuperSplitter
Single Channel unit
SuperSplitter DUO
Dual Channel 'Double Header'unit
Passive device - requires no power
SuperSplitter
ARX's new SuperSplitter is a transformer isolated one input to three outputs passive splitter. It is ideal for splitting one audio signal three ways in applications where complete Galvanic isolation is required. Galvanic Isolation using a transformer is the classic method used to prevent Ground Loops and Hums, providing Noiseless Signal routing, Broadcast Split feeds, Remote Recording splits and many more applications.
The SuperSplitter allows Phantom powering of Microphones and Direct Boxes via the Direct Out to Input XLR, and features 3 XLR direct & Isolated outputs.
Features:
- Input and Direct output are directly connected via an internal "loop through", allowing +48 VDC Phantom power to pass through the unit to Phantom power Microphones and DI Boxes
- Transformer isolation prevents ground loops, hums and other extraneous electrical noise and interference.
- Available in either Single Channel or Dual Channel "Double Header" format.
- Split 1 and Split 2 are fully transformer isolated outputs, with no direct Earth / Ground connection via XLR pin 1s.
- Uses the same Broadcast standard audio transformer as our industry standard MSX 48 & MSX 12 Splitters.
The SuperSplitter is housed in a heavy duty all-steel chassis finished in attractive matt textured polyurethane, with hardwearing epoxy screen printing and slip resistant rubber base pad.
Security features include an optional bracket kit for under-table mounting.
The ARX SuperSplitter is hand made in Australia
Technical Specifications
SuperSplitter Specifications
Input Impedance 300 Ohms
Output Impedance 2 secondaries @ 600 Ohms each
Frequency Response 30Hz - 20 KHz ± 1dB
Maximum Output Level + 20dBm
THD at Max Output 0.2% 30 Hz - 20KHz @ 20dBm
Insertion Loss 0.5dB @ 1 KHz (600 Ohm source & load)
Input Connectors 3 pin female XLR wired Pin 2 + Hot, Pin 3 – Cold
Direct Output 3 Pin male XLR wired Pin 2 + Hot, Pin 3 – Cold
Split 1 and Split 2 3 pin male XLR wired Pin 2 + Hot, Pin 3 – Cold. Audio grounds not connected; Pin 1 is floating.
IC-1 ISO COMBINER (AB-5) & IC-2 ISO COMBINER DUO (AB-6)
ISO Combiner
Model Options
ISO Combiner
Single Channel unit
ISO Combiner Duo
Dual Channel unit in DoubleHeader format.
-
The unique Audibox DoubleHeader format puts one channel on the front of the unit, and a second channel on the rear, putting two channels in the space of one! An ultra useful and convenient option.
Passive unit - no power required
ISO Combiner
The ISO-Combiner is a new transformer isolated combiner for the Audibox range of Pro Audio tools and problem solvers. It is ideal for use in applications where two sources have to be combined into one silently and easily.
A pair of transformer balanced female XLR inputs combine to deliver a single transformer isolated male XLR output in this essential audio package.
Available in Single Channel or Double Header format. The heavy duty all-steel chassis is finished in attractive matt textured powdercoat, with hardwearing epoxy screen printing and slip resistant rubber pads.
The ISO Combiner is a totally passive device with no power requirements, making it a universal problem solver.
Security features include Kensington®-type computer lock slot and optional bracket kit for under-table mounting.
The DUO version has a second input and output set on the rear, making it doubly useful
Precision engineered
Most of the Audibox range share a common footprint and manufacturing platform. Offset lid screws enable close side-by-side mounting of multiple units.
Click on image at Right to see larger version
-
Available in Single Channel or Double Header format
Technical Specifications
Input Impedance 600 Ohms Balanced
Max Input Level +20 dB
THD Max 0.2% 30Hz to 20 KHz
Frequency Response 20 - 20 KHz ± 0.5 dB
Insertion Loss < 6dB @ 1 KHz (600 Ohm source/load)
Power Requirements None
Input Connectors 2 x Female XLR, Wired Pin 1 Not Connected, Pin 2 + Hot, Pin 3 – Cold.
Output Connectors Male XLR, Wired Pin 1 Chassis Ground, Pin 2 + Hot, Pin 3 – Cold.
Construction All-steel powdercoated chassis chassis, fibreglass PCB, ultra low noise audio transformers
Please Note When combining Unbalanced Inputs, Pins 1 and 3 should be bridged and the Ground wired to Pin 3
